介绍

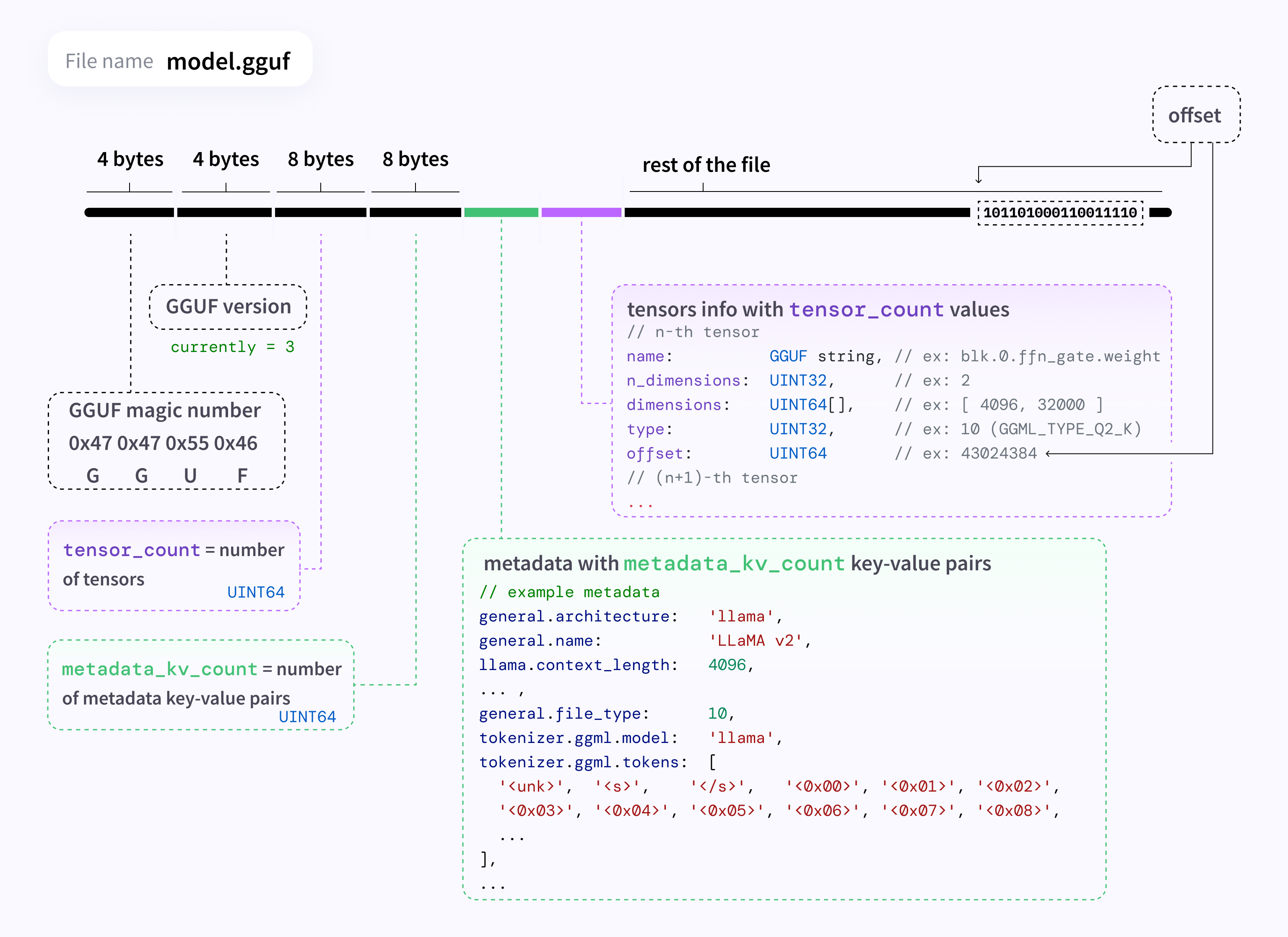

GGUF 是一种文件格式，用于存储用于 GGML 推理的模型和基于 GGML 的执行器。 GGUF 是一种二进制格式，旨在快速加载和保存模型并易于阅读。传统上，模型是使用 PyTorch 或其他框架开发的，然后转换为 GGUF 以在 GGML 中使用。
准备工作
基于生成式多模态文字识别模型GOT_OCR2.0示例。首先枚举GOT_OCR2.0模型全部权重键值对，获取模型网络结构命名。方法如下：
got_model = GOTQwenForCausalLM.from_pretrained(model_path)
tensors = []
for key, value in got_model.state_dict().items():
tensors.append((key, value))
print(f"{key} -> {list(value.shape)}")
print(f"Tensor count: {len(tensors)}")
model.embed_tokens.weight -> [151860, 1024]
model.layers.0.self_attn.q_proj.weight -> [1024, 1024]
model.layers.0.self_attn.q_proj.bias -> [1024]
model.layers.0.self_attn.k_proj.weight -> [1024, 1024]
model.layers.0.self_attn.k_proj.bias -> [1024]
model.layers.0.self_attn.v_proj.weight -> [1024, 1024]
model.layers.0.self_attn.v_proj.bias -> [1024]
model.layers.0.self_attn.o_proj.weight -> [1024, 1024]
model.layers.0.mlp.gate_proj.weight -> [2816, 1024]
model.layers.0.mlp.up_proj.weight -> [2816, 1024]
model.layers.0.mlp.down_proj.weight -> [1024, 2816]
model.layers.0.input_layernorm.weight -> [1024]
model.layers.0.post_attention_layernorm.weight -> [1024]
model.layers.1.self_attn.q_proj.weight -> [1024, 1024]
model.layers.1.self_attn.q_proj.bias -> [1024]
model.layers.1.self_attn.k_proj.weight -> [1024, 1024]
model.layers.1.self_attn.k_proj.bias -> [1024]
model.layers.1.self_attn.v_proj.weight -> [1024, 1024]
model.layers.1.self_attn.v_proj.bias -> [1024]
model.layers.1.self_attn.o_proj.weight -> [1024, 1024]
model.layers.1.mlp.gate_proj.weight -> [2816, 1024]
model.layers.1.mlp.up_proj.weight -> [2816, 1024]
model.layers.1.mlp.down_proj.weight -> [1024, 2816]
model.layers.1.input_layernorm.weight -> [1024]
model.layers.1.post_attention_layernorm.weight -> [1024]
......
model.layers.23.self_attn.q_proj.weight -> [1024, 1024]
model.layers.23.self_attn.q_proj.bias -> [1024]
model.layers.23.self_attn.k_proj.weight -> [1024, 1024]
model.layers.23.self_attn.k_proj.bias -> [1024]
model.layers.23.self_attn.v_proj.weight -> [1024, 1024]
model.layers.23.self_attn.v_proj.bias -> [1024]
model.layers.23.self_attn.o_proj.weight -> [1024, 1024]
model.layers.23.mlp.gate_proj.weight -> [2816, 1024]
model.layers.23.mlp.up_proj.weight -> [2816, 1024]
model.layers.23.mlp.down_proj.weight -> [1024, 2816]
model.layers.23.input_layernorm.weight -> [1024]
model.layers.23.post_attention_layernorm.weight -> [1024]
model.norm.weight -> [1024]
lm_head.weight -> [151860, 1024]
model.vision_tower_high.pos_embed -> [1, 64, 64, 768]
model.vision_tower_high.patch_embed.proj.weight -> [768, 3, 16, 16]
model.vision_tower_high.patch_embed.proj.bias -> [768]
model.vision_tower_high.blocks.0.norm1.weight -> [768]
model.vision_tower_high.blocks.0.norm1.bias -> [768]
model.vision_tower_high.blocks.0.attn.rel_pos_h -> [27, 64]
model.vision_tower_high.blocks.0.attn.rel_pos_w -> [27, 64]
model.vision_tower_high.blocks.0.attn.qkv.weight -> [2304, 768]
model.vision_tower_high.blocks.0.attn.qkv.bias -> [2304]
model.vision_tower_high.blocks.0.attn.proj.weight -> [768, 768]
model.vision_tower_high.blocks.0.attn.proj.bias -> [768]
model.vision_tower_high.blocks.0.norm2.weight -> [768]
model.vision_tower_high.blocks.0.norm2.bias -> [768]
model.vision_tower_high.blocks.0.mlp.lin1.weight -> [3072, 768]
model.vision_tower_high.blocks.0.mlp.lin1.bias -> [3072]
model.vision_tower_high.blocks.0.mlp.lin2.weight -> [768, 3072]
model.vision_tower_high.blocks.0.mlp.lin2.bias -> [768]
......
model.vision_tower_high.blocks.11.norm1.weight -> [768]
model.vision_tower_high.blocks.11.norm1.bias -> [768]
model.vision_tower_high.blocks.11.attn.rel_pos_h -> [127, 64]
model.vision_tower_high.blocks.11.attn.rel_pos_w -> [127, 64]
model.vision_tower_high.blocks.11.attn.qkv.weight -> [2304, 768]
model.vision_tower_high.blocks.11.attn.qkv.bias -> [2304]
model.vision_tower_high.blocks.11.attn.proj.weight -> [768, 768]
model.vision_tower_high.blocks.11.attn.proj.bias -> [768]
model.vision_tower_high.blocks.11.norm2.weight -> [768]
model.vision_tower_high.blocks.11.norm2.bias -> [768]
model.vision_tower_high.blocks.11.mlp.lin1.weight -> [3072, 768]
model.vision_tower_high.blocks.11.mlp.lin1.bias -> [3072]
model.vision_tower_high.blocks.11.mlp.lin2.weight -> [768, 3072]
model.vision_tower_high.blocks.11.mlp.lin2.bias -> [768]
model.vision_tower_high.neck.0.weight -> [256, 768, 1, 1]
model.vision_tower_high.neck.1.weight -> [256]
model.vision_tower_high.neck.1.bias -> [256]
model.vision_tower_high.neck.2.weight -> [256, 256, 3, 3]
model.vision_tower_high.neck.3.weight -> [256]
model.vision_tower_high.neck.3.bias -> [256]
model.vision_tower_high.net_2.weight -> [512, 256, 3, 3]
model.vision_tower_high.net_3.weight -> [1024, 512, 3, 3]
model.mm_projector_vary.weight -> [1024, 1024]
model.mm_projector_vary.bias -> [1024]
Tensor count: 472
定义模型架构
在转换脚本convert_hf_to_gguf.py中定义模型类，继承自Model父类。
@Model.register("GOTQwenForCausalLM")
class GOTOCR2Model(Model):
model_arch = gguf.MODEL_ARCH.GOT_OCR2
def set_vocab(self):
try:
self._set_vocab_sentencepiece()
except FileNotFoundError:
self._set_vocab_qwen()
定义张量布局
class MODEL_ARCH(IntEnum):
...
GOT_OCR2 = auto()
MODEL_ARCH_NAMES: dict[MODEL_ARCH, str] = {
...
MODEL_ARCH.GROK: "grok",
}
class MODEL_TENSOR(IntEnum):
TOKEN_EMBD = auto()
OUTPUT = auto()
OUTPUT_NORM = auto()
ATTN_NORM = auto()
ATTN_Q = auto()
ATTN_K = auto()
ATTN_OUT = auto()
FFN_NORM = auto()
FFN_GATE = auto()
FFN_DOWN = auto()
FFN_UP = auto()
VIS_ATTN_QKV = auto()
VIS_ATTN_PROJ = auto()
VIS_ATTN_REL_POS_H = auto()
VIS_ATTN_REL_POS_W = auto()
VIS_MLP_LIN1 = auto()
VIS_MLP_LIN2 = auto()
VIS_NORM1 = auto()
VIS_NORM2 = auto()
VIS_NECK = auto()
VIS_NET = auto()
VIS_PATCH_EMBD_PROJ = auto()
VIS_POS_EMBD = auto()
MM_PROJ = auto()
MODEL_TENSORS: dict[MODEL_ARCH, list[MODEL_TENSOR]] = {
MODEL_ARCH.GOT_OCR2: [
MODEL_TENSOR.TOKEN_EMBD,
MODEL_TENSOR.OUTPUT_NORM,
MODEL_TENSOR.OUTPUT,
MODEL_TENSOR.ATTN_NORM,
MODEL_TENSOR.ATTN_Q,
MODEL_TENSOR.ATTN_K,
MODEL_TENSOR.ATTN_V,
MODEL_TENSOR.ATTN_OUT,
MODEL_TENSOR.FFN_NORM,
MODEL_TENSOR.FFN_GATE,
MODEL_TENSOR.FFN_DOWN,
MODEL_TENSOR.FFN_UP,
MODEL_TENSOR.VIS_ATTN_QKV,
MODEL_TENSOR.VIS_ATTN_PROJ,
MODEL_TENSOR.VIS_ATTN_REL_POS_H,
MODEL_TENSOR.VIS_ATTN_REL_POS_W,
MODEL_TENSOR.VIS_MLP_LIN1,
MODEL_TENSOR.VIS_MLP_LIN2,
MODEL_TENSOR.VIS_NORM1,
MODEL_TENSOR.VIS_NORM2,
MODEL_TENSOR.VIS_NECK,
MODEL_TENSOR.VIS_NET,
MODEL_TENSOR.VIS_PATCH_EMBD_PROJ,
MODEL_TENSOR.VIS_POS_EMBD,
MODEL_TENSOR.MM_PROJ,
],
}
TENSOR_NAMES: dict[MODEL_TENSOR, str] = {
MODEL_TENSOR.TOKEN_EMBD: "token_embd",
MODEL_TENSOR.OUTPUT_NORM: "output_norm",
MODEL_TENSOR.OUTPUT: "output",
MODEL_TENSOR.ATTN_NORM: "blk.{bid}.attn_norm",
MODEL_TENSOR.ATTN_Q: "blk.{bid}.attn_q",
MODEL_TENSOR.ATTN_K: "blk.{bid}.attn_k",
MODEL_TENSOR.ATTN_V: "blk.{bid}.attn_v",
MODEL_TENSOR.ATTN_OUT: "blk.{bid}.attn_output",
MODEL_TENSOR.FFN_NORM: "blk.{bid}.ffn_norm",
MODEL_TENSOR.FFN_GATE: "blk.{bid}.ffn_gate",
MODEL_TENSOR.FFN_DOWN: "blk.{bid}.ffn_down",
MODEL_TENSOR.FFN_UP: "blk.{bid}.ffn_up",
MODEL_TENSOR.VIS_ATTN_QKV: "vis.blk.{bid}.attn.qkv", # standardize tensor name in GGUF
MODEL_TENSOR.VIS_ATTN_PROJ: "vis.blk.{bid}.attn.proj",
MODEL_TENSOR.VIS_ATTN_REL_POS_H: "vis.blk.{bid}.attn.rel_pos_h",
MODEL_TENSOR.VIS_ATTN_REL_POS_W: "vis.blk.{bid}.attn.rel_pos_w",
MODEL_TENSOR.VIS_MLP_LIN1: "vis.blk.{bid}.mlp.lin1",
MODEL_TENSOR.VIS_MLP_LIN2: "vis.blk.{bid}.mlp.lin2",
MODEL_TENSOR.VIS_NORM1: "vis.blk.{bid}.norm1",
MODEL_TENSOR.VIS_NORM2: "vis.blk.{bid}.norm2",
MODEL_TENSOR.VIS_NECK: "vis.neck.{bid}",
MODEL_TENSOR.VIS_NET: "vis.net_{bid}",
MODEL_TENSOR.VIS_PATCH_EMBD_PROJ: "vis_patch_embd.proj",
MODEL_TENSOR.VIS_POS_EMBD: "vis_pos_embd",
MODEL_TENSOR.MM_PROJ: "mm_proj",
}
张量映射
将原始张量名称映射到 GGUF 中的标准化等效名称。作为一般规则，在向 GGUF 添加新的张量名称之前，请确保等效命名尚不存在。找到等效的 GGUF 张量名称后，将其添加到tensor_mapping.py 文件中。如果张量名称是重复层/块的一部分，则关键字 bid 替换。
from .constants import MODEL_ARCH, MODEL_TENSOR, MODEL_TENSORS, TENSOR_NAMES
class TensorNameMap:
mappings_cfg: dict[MODEL_TENSOR, tuple[str, ...]] = {
# Vision tower
MODEL_TENSOR.MM_PROJ: (
"model.mm_projector_vary", # got
),
MODEL_TENSOR.VIS_PATCH_EMBD_PROJ: (
"model.vision_tower_high.patch_embed.proj", # got
),
MODEL_TENSOR.VIS_POS_EMBD: (
"model.vision_tower_high.pos_embed", # got
),
# Token embeddings
MODEL_TENSOR.TOKEN_EMBD: (
"model.embed_tokens", # llama-hf nemotron olmoe got
),
# Output
MODEL_TENSOR.OUTPUT: (
"lm_head", # gpt2 mpt falcon llama-hf baichuan qwen mamba dbrx jais nemotron exaone olmoe got
),
# Output norm
MODEL_TENSOR.OUTPUT_NORM: (
"model.norm", # llama-hf baichuan internlm2 olmoe got
),
block_mappings_cfg: dict[MODEL_TENSOR, tuple[str, ...]] = {
# Attention norm
MODEL_TENSOR.ATTN_NORM: (
"model.layers.{bid}.input_layernorm", # llama-hf nemotron olmoe got
),
# Attention query
MODEL_TENSOR.ATTN_Q: (
"model.layers.{bid}.self_attn.q_proj", # llama-hf nemotron olmoe got
),
# Attention key
MODEL_TENSOR.ATTN_K: (
"model.layers.{bid}.self_attn.k_proj", # llama-hf nemotron olmoe got
),
# Attention value
MODEL_TENSOR.ATTN_V: (
"model.layers.{bid}.self_attn.v_proj", # llama-hf nemotron olmoe got
),
# Attention output
MODEL_TENSOR.ATTN_OUT: (
"model.layers.{bid}.self_attn.o_proj", # llama-hf nemotron olmoe got
),
# Attention output norm
MODEL_TENSOR.ATTN_OUT_NORM: (
"encoder.layer.{bid}.attention.output.LayerNorm", # bert
"encoder.layers.{bid}.norm1", # nomic-bert
"transformer.decoder_layer.{bid}.rms_norm_1", # Grok
"transformer.blocks.{bid}.norm_attn_norm.norm_2", # dbrx
),
# Feed-forward norm
MODEL_TENSOR.FFN_NORM: (
"model.layers.{bid}.post_attention_layernorm", # llama-hf nemotron olmoe got
),
# Feed-forward up
MODEL_TENSOR.FFN_UP: (
"model.layers.{bid}.mlp.up_proj", # llama-hf refact nemotron got
),
# Feed-forward gate
MODEL_TENSOR.FFN_GATE: (
"model.layers.{bid}.mlp.gate_proj", # llama-hf refact got
),
# Feed-forward down
MODEL_TENSOR.FFN_DOWN: (
"model.layers.{bid}.mlp.down_proj", # llama-hf nemotron got
),
MODEL_TENSOR.VIS_ATTN_QKV: (
"model.vision_tower_high.blocks.{bid}.attn.qkv", # got
),
MODEL_TENSOR.VIS_ATTN_PROJ: (
"model.vision_tower_high.blocks.{bid}.attn.proj", # got
),
MODEL_TENSOR.VIS_ATTN_REL_POS_H: (
"model.vision_tower_high.blocks.{bid}.attn.rel_pos_h", # got
),
MODEL_TENSOR.VIS_ATTN_REL_POS_W: (
"model.vision_tower_high.blocks.{bid}.attn.rel_pos_w", # got
),
MODEL_TENSOR.VIS_MLP_LIN1: (
"model.vision_tower_high.blocks.{bid}.mlp.lin1", # got
),
MODEL_TENSOR.VIS_MLP_LIN2: (
"model.vision_tower_high.blocks.{bid}.mlp.lin2", # got
),
MODEL_TENSOR.VIS_NORM1: (
"model.vision_tower_high.blocks.{bid}.norm1", # got
),
MODEL_TENSOR.VIS_NORM2: (
"model.vision_tower_high.blocks.{bid}.norm2", # got
),
MODEL_TENSOR.VIS_NECK: (
"model.vision_tower_high.neck.{bid}", # got
),
MODEL_TENSOR.VIS_NET: (
"model.vision_tower_high.net_{bid}", # got
),
}
基于模型的配置，tokenizer,，代码和张量布局，可能需要覆盖重写一下类方法：
- Model.set_gguf_parameters
- Model.set_vocab
- Model.write_tensors
具体在第3章定义模型架构中实现。
注意：张量名称必须以 .weight 后缀结尾， quantize量化工具会默认处理权重。
模型参数转换
python convert_hf_to_gguf.py --outtype bf16 --model ~/GOT-OCR2_0 --outfile ~/output/GOT-OCR2_0-GGUF
实现
https://github.com/jerrylsu/gguf-py
致谢🙏
ggml: Tensor library for machine learning.
llama.cpp: LLM inference in C/C++.
GOT-OCR2.0: Official code implementation of General OCR Theory: Towards OCR-2.0 via a Unified End-to-end Model.
